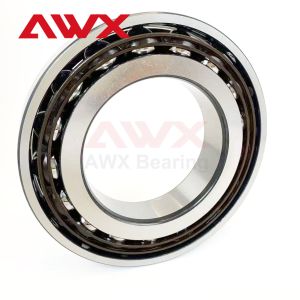

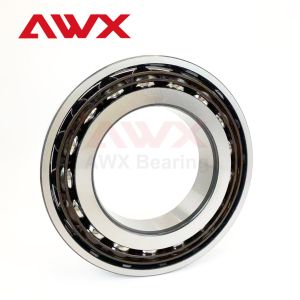

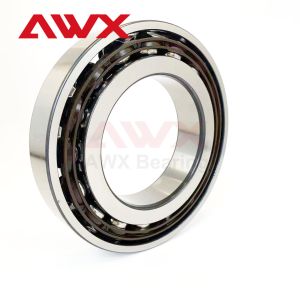

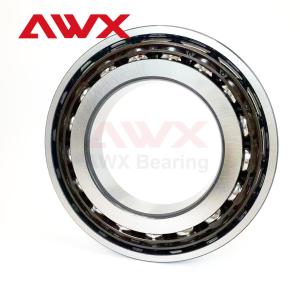

Product Description:
Angular contact ball bearing is a rolling bearing that can bear
radial and axial loads at the same time and is suitable for
high-speed operation. The inner and outer ring raceways are at a
certain angle, so that the bearing can bear combined loads. The
contact angle is the core design parameter and determines the axial
load-bearing capacity of the bearing.
Structure and composition
Inner and outer rings: The raceways are at a certain angle, so that
the bearing can bear combined loads.
Rolling element (steel ball): Rolls between the inner and outer
rings to transfer loads.
Retainer (cage): Separates the rolling elements, reduces friction
and wear, and guides the movement of the rolling elements.
Product Parameters:
| Designation | (mm) | (KN) | (rpm) | Weight |
| Principal Dimensions | Basic Load Ratings | Limited Speed |
| | d | D | B | Dynamic Load | Static Load | Grease Lubrication | Oil Lubrication | Mass(Kg) |
| 7800C | - | 10 | 19 | 5 | - | - | - | - | 0.005 |
| 7000C | - | | 26 | 8 | 4.9 | 2.1 | 24000 | 32000 | 0.019 |
| 7000AC | - | | 26 | 8 | 4.7 | 2.1 | 24000 | 32000 | 0.019 |
| 7200C | - | | 30 | 9 | 5.8 | 2.9 | 22000 | 28000 | 0.032 |
| 7200AC | - | | 30 | 9 | 5.5 | 2.8 | 22000 | 28000 | 0.032 |
| 7200B | 7200AA | | 30 | 9 | 5.3 | 2.7 | 19000 | 27000 | 0.03 |
| 7300C | - | | 35 | 11 | 9.8 | 4.6 | 18000 | 26000 | 0.053 |
| 7300AC | - | | 35 | 11 | 9.5 | 4.4 | 18000 | 26000 | 0.053 |
| 7801C | - | 12 | 21 | 5 | - | - | - | - | 0.006 |
| 7901C | - | | 24 | 6 | 3.3 | 1.8 | 28000 | 36000 | 0.011 |
| 7901AC | - | | 24 | 6 | 3.2 | 1.7 | 28000 | 36000 | 0.011 |
| 7001C | - | | 28 | 8 | 5.4 | 2.6 | 22000 | 28000 | 0.021 |
| 7001AC | - | | 28 | 8 | 5.1 | 2.4 | 22000 | 28000 | 0.021 |
| 7201C | - | | 32 | 10 | 7.9 | 3.8 | 20000 | 25000 | 0.037 |
| 7201AC | - | | 32 | 10 | 7.6 | 3.6 | 20000 | 25000 | 0.037 |
| 7201B | 7201AA | | 32 | 10 | 6.9 | 3.2 | 18000 | 24000 | 0.036 |
| 7301C | - | | 37 | 12 | 11.8 | 5.6 | 17000 | 24000 | 0.06 |
| 7301AC | - | | 37 | 12 | 11.5 | 5.4 | 17000 | 24000 | 0.06 |
| 7301B | 7301AA | | 37 | 12 | 10.5 | 4.9 | 16000 | 22000 | 0.06 |
| 7802C | - | 15 | 24 | 5 | - | - | - | - | 0.007 |
| 7902C | - | | 28 | 7 | 4.7 | 2.6 | 24000 | 32000 | 0.015 |
| 7902AC | - | | 28 | 7 | 4.5 | 2.5 | 24000 | 32000 | 0.015 |
| 7002C | - | | 32 | 9 | 6.2 | 3.3 | 19000 | 25000 | 0.03 |
| 7002AC | - | | 32 | 9 | 5.9 | 3.2 | 19000 | 25000 | 0.03 |
| 7202C | - | | 35 | 11 | 9.2 | 4.9 | 17000 | 22000 | 0.045 |
| 7202AC | - | | 35 | 11 | 8.9 | 4.8 | 17000 | 22000 | 0.045 |
| 7202B | 7202AA | | 35 | 11 | 7.9 | 4.2 | 16000 | 22000 | 0.045 |
| 7302C | - | | 42 | 13 | 13.2 | 6.7 | 15000 | 21000 | 0.084 |
| 7302AC | - | | 42 | 13 | 12.5 | 6.2 | 15000 | 21000 | 0.084 |
| 7302B | 7302AA | | 42 | 13 | 12.4 | 6.5 | 14000 | 19000 | 0.08 |
Carrying capacity: Angular contact ball bearings have high radial
and axial load capacity, especially when subjected to large axial
loads, its advantages are more obvious. The contact angle of the
bearing determines its load capacity and scope of use.
Contact angle: One of the characteristics of angular contact ball
bearings is that there is a certain contact angle between its ball
and the inner and outer rings, which is usually 15°, 25°, 30°, etc.
The larger the contact angle, the stronger the axial load capacity.
Adapt to high loads: Angular contact ball bearings are usually used
in applications that need to withstand both radial and axial loads.
For example, machine tool spindles, motors, automotive bearings,
etc.
Withstand high speeds: Angular contact ball bearings use spherical
rolling elements, which have relatively low friction resistance and
can operate at higher speeds.
Single row and double row: Single row angular contact ball bearings
usually withstand axial loads in a single direction, while double
row angular contact ball bearings can withstand axial loads in both
directions. Double row types are common in applications that
require higher load capacity.
Preload: Angular contact ball bearings are often preloaded to
improve stiffness and load capacity. This preload can be achieved
through the way the bearing is assembled.
Flexible application: Angular contact ball bearings can be
configured with different angles and structures to adapt to
different working environments and load requirements.
Applications:
Application industries of angular contact ball bearings:
Machine tool industry
Angular contact ball bearings are commonly used in machine tool
spindles, servo motors, and precision equipment. They are mainly
used to bear mixed radial and axial loads to meet the needs of high
precision and high speed.
Automotive industry
Angular contact ball bearings can be used in high-load,
high-precision transmission systems in automobile hubs, drive
shafts, steering systems, and engines. Especially in
high-performance automotive moving parts and electric vehicles.
Aerospace industry
Angular contact ball bearings are commonly used in various key
components of aircraft engines and aircraft. Angular contact ball
bearings can withstand extremely high speeds and provide stable
support.
Power tools
Angular contact ball bearings are widely used in power tools such
as electric drills, sanders, lawn mowers, etc., helping tools
provide smooth operation and efficient power transmission.
Wind power generation
The rotating parts in wind turbines require high-precision
bearings. Angular contact ball bearings can effectively carry the
axial and radial loads of the fan and maintain stable operation.
Railway and Transportation
Angular contact ball bearings play an important role in the drive
systems of railway locomotives and vehicles and high-speed running
parts of transportation vehicles, helping to withstand high loads
and improve transmission efficiency.
Precision Instruments and Medical Equipment
Precision instruments such as optical equipment, laser scanners,
and rotating parts in medical equipment require very precise
bearings. Angular contact ball bearings can provide high rigidity
and low friction characteristics to ensure high precision of the
equipment.
Robots and Automation Equipment
Angular contact ball bearings are widely used in automation
equipment and robot joints. These devices often require high-speed
and high-precision motion control. Angular contact ball bearings
provide an ideal solution.
Electronic Equipment and Motors
In electric motors, servo motors, and other rotating equipment,
angular contact ball bearings are used to withstand radial and
axial loads and maintain high efficiency and long life of the
equipment.
Packing and Shipping:
Product Packaging and Shipping:
This Angular Contact Ball Bearing is carefully packaged to ensure
its safety during transportation. It is placed in a sturdy
cardboard box with protective padding to prevent any damage. The
box is labeled with the product details for easy identification.
For shipping, we use reliable courier services to deliver the
product to your doorstep. You will receive a tracking number once
the package has been dispatched so you can monitor the delivery
status.
FAQ:
Q: What is the brand name of this Angular Contact Ball Bearing?
A: The brand name of this product is AWX.
Q: Where is this Angular Contact Ball Bearing manufactured?
A: This product is manufactured in China.
Q: What certifications does this Angular Contact Ball Bearing have?
A: This product is certified with CE/ISO.
Q: What is the minimum order quantity for this Angular Contact Ball
Bearing?
A: The minimum order quantity for this product is 10pcs.
Q: How is this Angular Contact Ball Bearing packaged for shipping?
A: This product is packaged in cartons for shipping.
Q: What is the delivery time for this Angular Contact Ball Bearing?
A: The delivery time for this product is within 7 days.
Q: What is the supply ability for this Angular Contact Ball
Bearing?
A: The supply ability for this product is 1000000 units.
